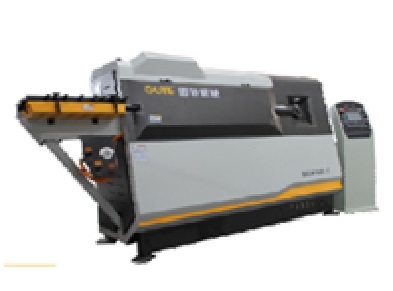

Cnc Steel Bar Stirrup Bender Bhi-Sgw12d-1

Product Description

TENSILE STRENGTH: Kg/mm2 45: Kg/mm2 65

SINGLEWIRE BENDING: 5-13mm: 5-11 mm

DOUBLEWIRE BENDING: 5-10 mm:5-8 mm

OPERATION:Automatic wire feeding system(CNC)

MAX.BENDING ANGLE: 180°

MAX.LENGTH OF STIRRUP SIDE:1000 mm

MIN.LENGTH OF STIRRUP SIDE: 90mm

MAX.BENDING SPEED:1050°/sec

MAX.TRACTION SPEED: 75-100m/min

BENDINGDIRECTION: Bi-direction

WEIGHT: 2.4 Tons

L—W—H: 3800—1000—2200 mm

PRODUCT DESCRIPTION

• Automatic wire feeding system (CNC);
• Moveable air compressor design, to ensure better cooling effect, easytransportation and installation;
• Split, multi-blade design (patented) to reduce consumption costs;
• Large storage capacity can save 500 processing geometric graphics, high degreeautomation;
• Automatic double wire intake system, high processing efficiency; •
• Highpower feeding motor to ensure bending bar accuracy; • ISO 9001:2008certification.
